条码打印机|霍尼韦尔· 更新于 2026-07-23

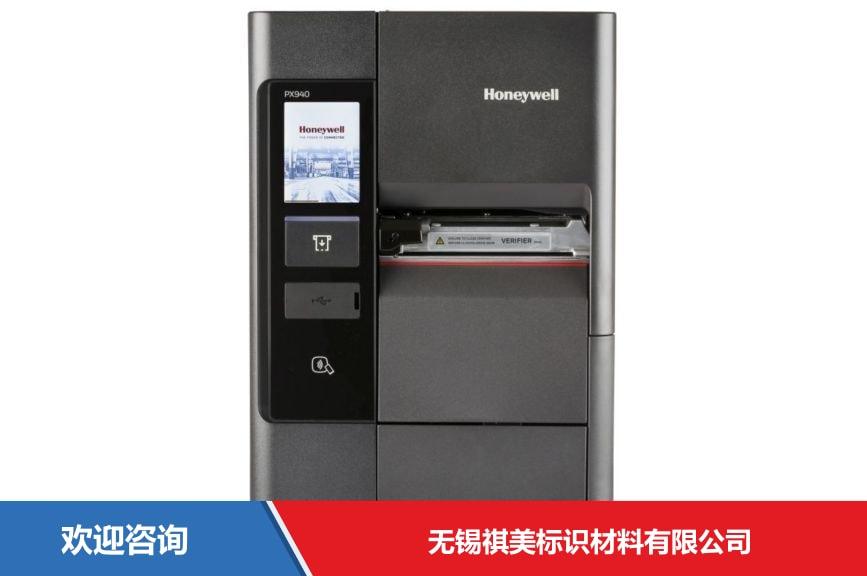

Honeywell 霍尼韦尔 PX940 条码打印机

医疗运输和物流制造配送中心零售

快速回答

Honeywell 霍尼韦尔 PX940 条码打印机是什么？

霍尼韦尔 PX940 系列具备集成的标签验证技术，为客户提供无错误的精确打印（±0.2 mm），提升生产效率并降低运营成本，配多语言彩色触摸屏和智能打印功能，无需主机即可配置和打印，适用于运输物流、制药医疗保健、配送、工业制造和汽车零部件供应链。

1 / 3

产品简介

霍尼韦尔 PX940 系列具备集成的标签验证技术，为客户提供无错误的精确打印（±0.2 mm），提升生产效率并降低运营成本，配多语言彩色触摸屏和智能打印功能，无需主机即可配置和打印，适用于运输物流、制药医疗保健、配送、工业制造和汽车零部件供应链。

核心优势

±0.2 mm 超精确打印
集成标签验证技术，无错打印

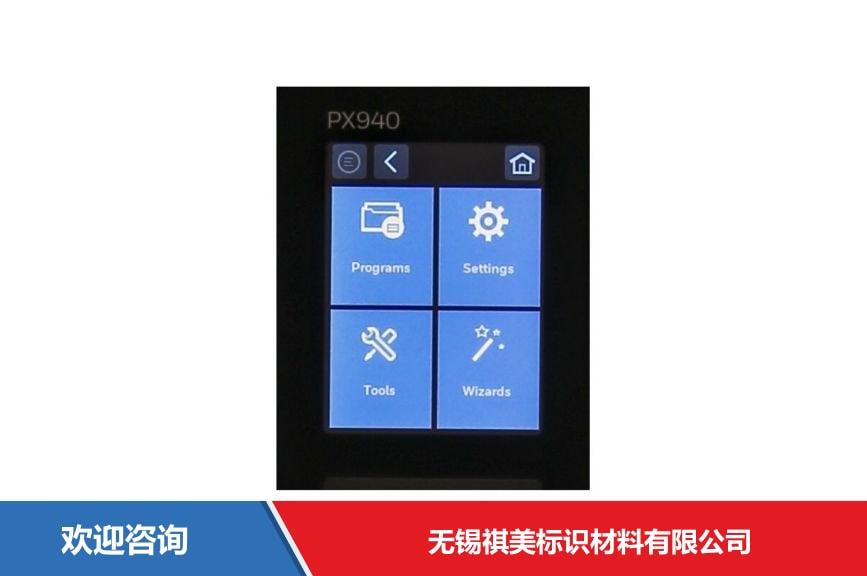

多语言彩色触摸屏
智能打印无需主机
运营智能软件预测分析

关键参数

Brand: Honeywell
Warranty Duration: One year factory warranty
Product Call-Outs: Easy to use and maintain, with a color multilingual touchscreen interface and quick side-loading design.|Extremely precise printing of up to +/-0.2 mm (0.0079 in) virtually eliminates poor-quality, unreadable labels and barcodes.|Integrated label verification technology checks and ensures that barcodes are accurate every time; instantly notifies you of pass/fail status and ANSI grade.|Operational Intelligence software provides predictive analytics and data on printer health to help managers oversee their entire printer fleet and proactively prevent issues, ensuring maximum uptime.|Smart printing capability allows users to configure and print without the need for a host computer.

规格参数

参数	规格
Brand	Honeywell
Warranty Duration	One year factory warranty
Product Call-Outs	Easy to use and maintain, with a color multilingual touchscreen interface and quick side-loading design.\|Extremely precise printing of up to +/-0.2 mm (0.0079 in) virtually eliminates poor-quality, unreadable labels and barcodes.\|Integrated label verification technology checks and ensures that barcodes are accurate every time; instantly notifies you of pass/fail status and ANSI grade.\|Operational Intelligence software provides predictive analytics and data on printer health to help managers oversee their entire printer fleet and proactively prevent issues, ensuring maximum uptime.\|Smart printing capability allows users to configure and print without the need for a host computer.
Product Overview	The PX940 series takes industrial printing to a new level of accuracy and simplicity by providing customers with error-free precision printing, increasing production efficiency and reducing operational costs.
Verifier Light Source Wavelength	660 nm

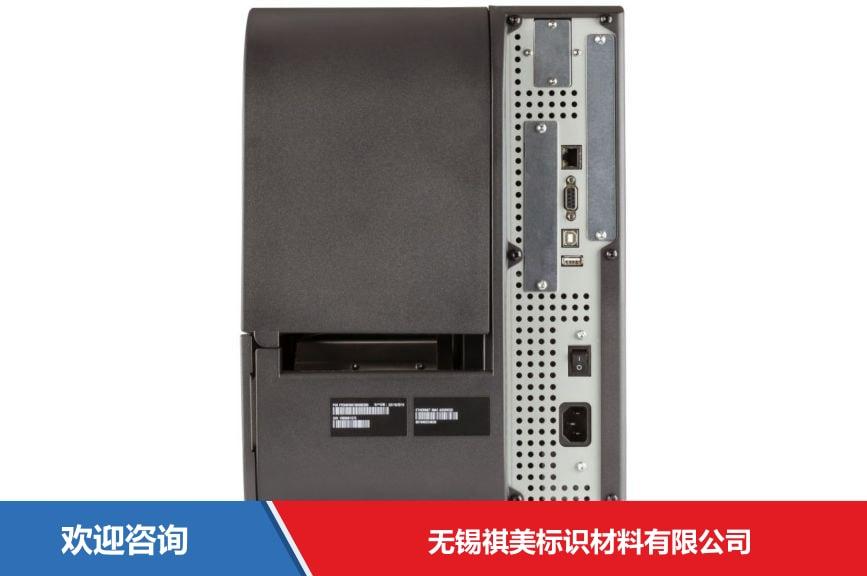

Printer Connection Interface	Applicator Interface\|Industrial interface\|Parallel Interface (IEEE 1284)\|RS-232\|USB 2.0 Host x2
Verified Linear Barcodes	Code 128\|Code 39\|EAN-128\|EAN-13\|EAN-8\|GS1 Databar Expanded\|GS1-128\|HIBC 128\|HIBC 39\|ISBT 128\|ITF-14\|Interleaved 2 of 5\|RSS14E\|SCC-14\|UPC-A\|UPC-E
Printer Command Language	C# Smart Printing\|DPL\|Fingerprint (FP)\|Intermec Printer Language (IPL)\|PDF\|WMSDirect Protocol (DP)\|XML-enabled for SAP AII and Oracle WMS\|ZSim2 (ZPL-II)
Bluetooth Specifications	Bluetooth LE (for Print Set MC only)
Wireless Communication	Bluetooth LE\|NFC
Network Specifications	Ethernet 10/100 Mbps
Downloadable Font Type	Bitmap Font\|OpenType Font (TrueType based)\|TrueType Font
Verification Standard	ISO 15415/15416
Verified 2D Barcodes	Data Matrix\|ISBT Data Matrix\|QR code
Verifier Scan Width	108mm (4.25 in)
Operating Frequency	50 - 60 Hz
Printer Media Type	Label\|RFID\|Ribbon\|Tag
Compatible Drivers	CUPS Driver for Linux\|Certified Device Types for SAP\|InterDriver Windows
Image File Format	BMP\|GIF\|PCX\|PNG
Linear Barcodes	All major 1D barcodes
Print Speeds	50-350mm/s (2-14 ips)
Print Method	Direct Thermal\|Thermal Transfer
Flash Memory	256 MB
Resolutions	203 dpi\|300 dpi\|600 dpi
Font Engine	Monotype Font Engine\|WTLE for Global Language Support
RAM Memory	1 GB
Platform	Honeywell Printer Edge
Memory	External Multi-GB USB memory device (FAT16/FAT32)
Maximum Operating Temperature	104 °F\|40 °C
Minimum Operating Humidity	20%
Operating Temperature	+5°C to +40°C (+41°F to +104°F)
Storage Temperature	-20°C to +70°C (-4°F to +152°F)
Operating Humidity	20 - 85 % non-condensing
Storage Humidity	20 - 85 % non-condensing
Maximum Media Roll Diameter	213 mm (8.38 in)
Minimum Media Thickness	0.003
Maximum Ribbon Length	450 m (1476 ft)
Overall Dimensions	50.6 x 39.87 x 26.1 cm (19.92 in x 15.70 in x 10.28 in)
Weight	PX940 with Verifier: 23.5 kg (51.81 lbs)\|PX940: 23 kg (50.71 lbs)
Verifier Scan Resolution	600 dpi
2D Barcodes	All major 2D barcodes
Features	Edge Intelligence Providing Customers with Predictive Analytics\|Integrated Label Verification Technology Providing Error-free Printing\|Precision Printing with Registration of +/-0.2 mm
Compatible Software	BarTender\|Nicelabel\|Operational Intelligence\|SOTI Connect\|Teklynx Labelview
Application	Automotive\|DC/Warehouse\|Healthcare\|Manufacturing
Operating Voltage	100 - 240 V AC
Print Technology	Thermal Transfer
Print Resolution	203 dpi\|300 dpi\|600 dpi
Print Volume	Up to 10,000
Connectivity	Ethernet\|Wi-Fi
Print Width	4 inch
Industry	Healthcare\|Healthcare\|Logistics & Warehouses\|Manufacturing

应用场景

· 运输物流
· 制药医疗合规
· 配送中心
· 工业制造追溯
· 汽车零部件

方案推荐

化工 GHS 化学品合规标签打印方案

GHS（全球化学品统一分类和标签系统）合规是化工、涂料、油漆、清洁剂、农药等企业必须满足的强制要求。GHS 标签面积大、图形复杂、字号要求精确、多语言并存，对打印机的宽幅、分辨率、耐用性提出了远超普通标签的要求。本方案基于霍尼韦尔宽幅工业打印机组合，帮助化工企业实现从原料入厂到成品出厂的 GHS 合规标签一体化打印，满足国际运输、区域法规和客户特殊要求。

查看方案详情 →
