条码打印机|霍尼韦尔· 更新于 2026-07-23

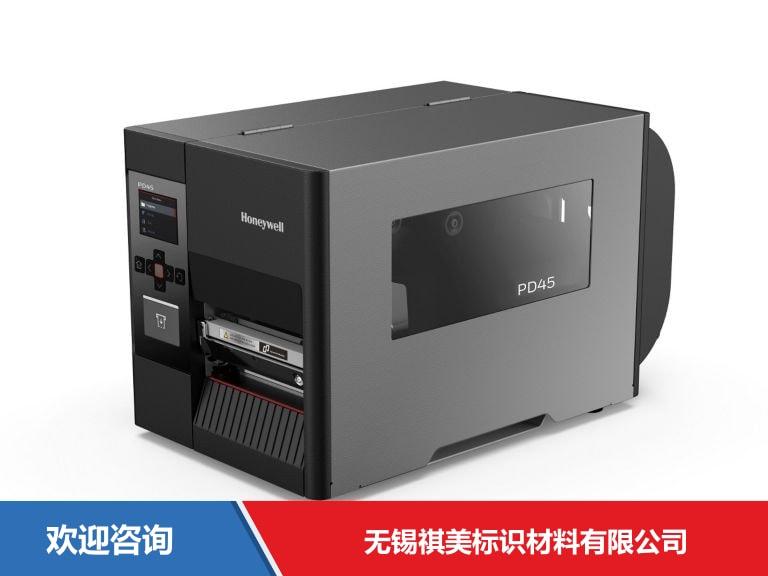

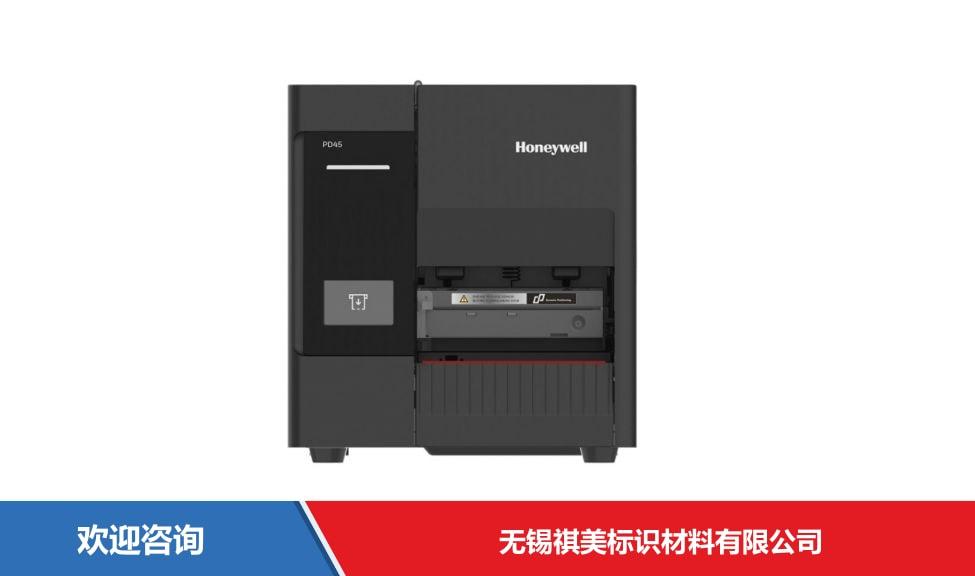

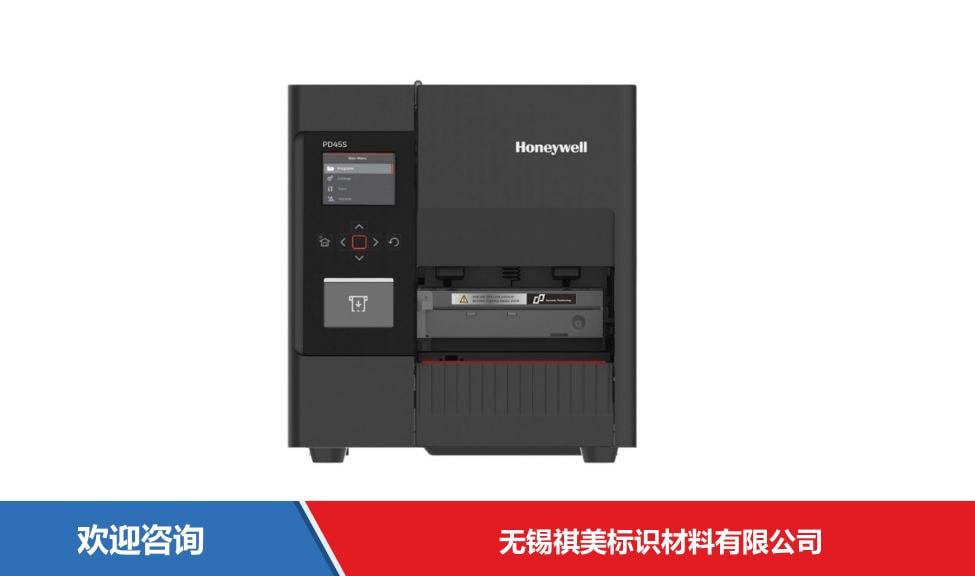

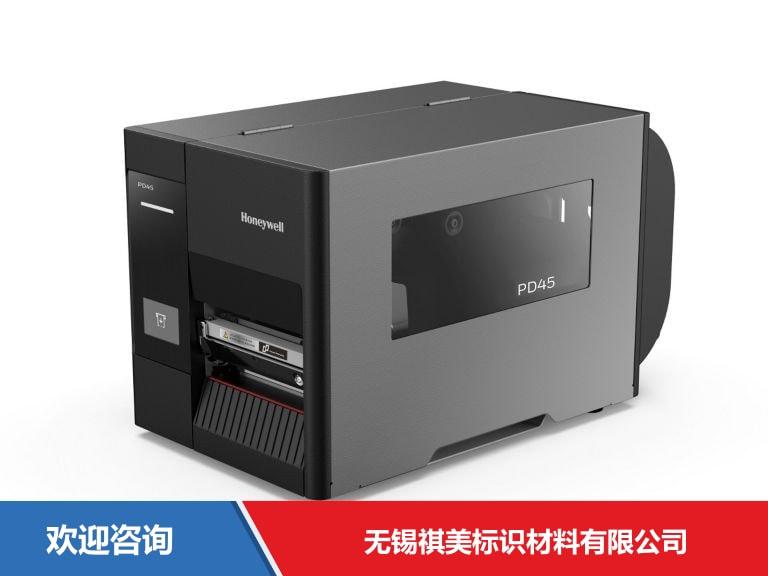

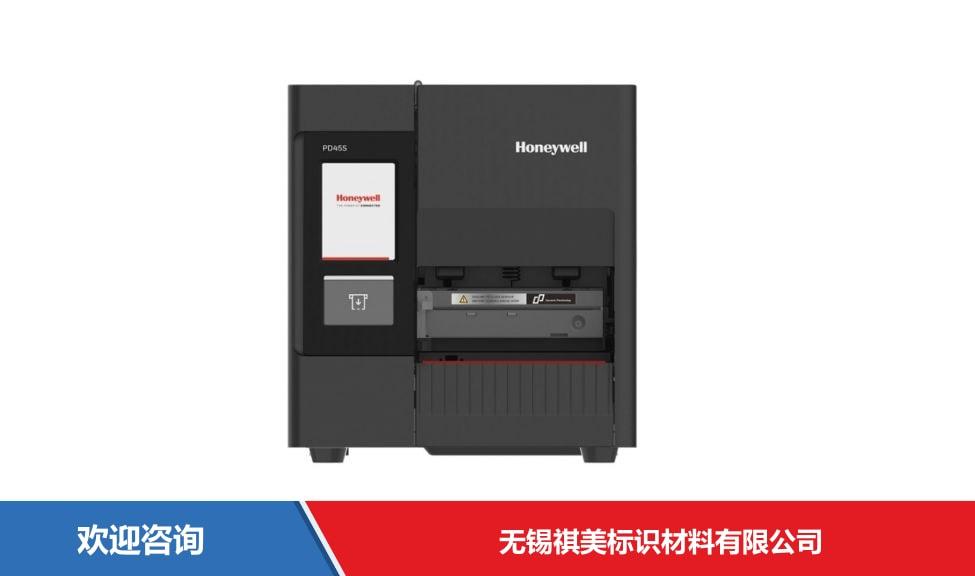

Honeywell 霍尼韦尔 PD45S 条码打印机

医疗运输和物流制造配送中心零售

快速回答

Honeywell 霍尼韦尔 PD45S 条码打印机是什么？

霍尼韦尔 PD45S / PD45 是新一代商用工业条码打印机，配备坚固的全金属机身、Arm Cortex-A7 800MHz 处理器、全彩触摸 LCD 显示屏和多种打印机指令语言兼容，是制造、零售、物流、医疗和政府应用中竞品打印机的理想替代方案。

1 / 7

产品简介

霍尼韦尔 PD45S / PD45 是新一代商用工业条码打印机，配备坚固的全金属机身、Arm Cortex-A7 800MHz 处理器、全彩触摸 LCD 显示屏和多种打印机指令语言兼容，是制造、零售、物流、医疗和政府应用中竞品打印机的理想替代方案。

核心优势

坚固全金属机身
Arm Cortex-A7 800MHz 处理器
全彩触摸 LCD 用户体验
多种打印机指令语言兼容
现有竞品打印机替换首选

关键参数

Memory: External Multi-GB USB memory device (FAT16/FAT32)
Printer Connection Interface: RS-232, up to 115.2 KB/s
Printer Command Language: C# Smart Printing|DPL|Direct Protocol (DP)|Fingerprint (FP)|Intermec Printer Language (IPL)|PDF|XML-enabled for SAP AII and Oracle WMS|ZSim2 (ZPL-II)

规格参数

参数	规格
Memory	External Multi-GB USB memory device (FAT16/FAT32)
Printer Connection Interface	RS-232, up to 115.2 KB/s
Printer Command Language	C# Smart Printing\|DPL\|Direct Protocol (DP)\|Fingerprint (FP)\|Intermec Printer Language (IPL)\|PDF\|XML-enabled for SAP AII and Oracle WMS\|ZSim2 (ZPL-II)
Wireless Communication	IEEE 802.11 a/b/g/n/ac
Network Specifications	Ethernet 10/100 Mbps
Downloadable Font Type	Bitmap Font\|OpenType Font (TrueType based)\|TrueType Font
Operating Frequency	50 - 60 Hz
Printer Media Type	Label
Compatible Drivers	CUPS Driver for Linux\|Certified Device Types for SAP\|InterDriver Windows
Image File Format	BMP\|GIF\|PCX\|PNG
Linear Barcodes	All major 1D barcodes
Print Speeds	50-250mm/s (2-10 ips)
Print Method	Direct Thermal\|Thermal Transfer
Flash Memory	256 MB
Resolutions	203 dpi\|300 dpi
Font Engine	Monotype Font Engine\|WTLE for Global Language Support
RAM Memory	256 MB
Platform	Honeywell Printer Edge
Maximum Media Roll Diameter	203.2 mm (8.0 in)
Maximum Ribbon Length	450 m (1476 ft)
Overall Dimensions	L x H x W: 438 mm x 270 mm x 249 mm (17.24 in x 10.63 in x 9.80 in)
Operating Temperature	+5°C to +40°C (+41°F to +104°F)
Storage Temperature	-20°C to +70°C (-4°F to +152°F)
Operating Humidity	20 - 85 % non-condensing
Storage Humidity	20 - 80 % non-condensing
Compatible Software	BarTender\|Nicelabel\|Operational Intelligence\|SOTI Connect
Application	Manufacturing\|health care\|retail\|transportation & logistics
Warranty Duration	One year factory warranty
Operating Voltage	100V AC to 240V AC
Print Technology	Thermal Transfer
Print Resolution	203 dpi\|300 dpi
Print Volume	Up to 10,000
Connectivity	Direct to PC\|Ethernet
Print Width	4 inch
Industry	Healthcare\|Logistics & Warehouses\|Manufacturing\|Retail
2D Barcodes	All major 2D barcodes
Features	Complete after-sales services. Honeywell Global Service Support can provide customers and partners with the best support and visiting service in the industry. Honeywell’s services can improve the production efficiency, equipment reliability and uptime indicators.\|Easy to operate. Supporting one-key driver installation and facilitating printer cleaning and parts replacement.\|Excellent performance. Advanced industrial print head ensures high printing quality and durable.\|Patented Dual-sensor Positioning Technology. Ensuring the minimum width of 5mm and the position accuracy of ±0.5mm with the dynamic positioning function.\|Rugged and Durable. Suitable for a large variety of working environments with all-metal frame structure.

应用场景

· 制造标签
· 零售价签
· 物流面单
· 医疗保健合规
· 政府应用
