条码扫描器|霍尼韦尔· 更新于 2026-07-23

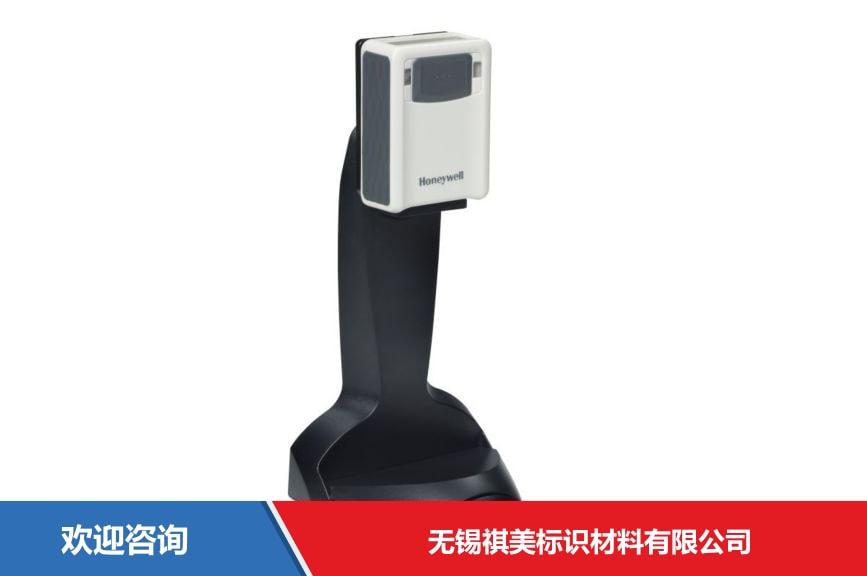

Honeywell 霍尼韦尔 Vuquest 3320g 条码扫描器
零售运输和物流制造医疗配送中心
快速回答
Honeywell 霍尼韦尔 Vuquest 3320g 条码扫描器 是什么？
霍尼韦尔 Vuquest 3320g 紧凑型面积成像扫描器可扫描一维、PDF 和二维条码，时尚优雅设计融合零售环境，提供出色的印刷条码和智能设备数字条码扫描性能，支持 TotalFreedom 应用直接上传，是零售、报亭固定安装的理想选择。
1 / 6
产品简介
霍尼韦尔 Vuquest 3320g 紧凑型面积成像扫描器可扫描一维、PDF 和二维条码，时尚优雅设计融合零售环境，提供出色的印刷条码和智能设备数字条码扫描性能，支持 TotalFreedom 应用直接上传，是零售、报亭固定安装的理想选择。
核心优势
- 紧凑面积成像 1D/PDF/2D
- TotalFreedom 应用直接上传
- 非激光调幅精准指示
- 轻松扫描屏幕数字条码
- 智能多接口设计
关键参数
- Skew
- 65
- Maximum Brightness
- 100,000
- Decode Capability
- 1D/2D
规格参数
| 参数 | 规格 |
|---|---|
| Skew | 65 |
| Maximum Brightness | 100,000 |
| Decode Capability | 1D/2D |
| Motion Tolerance | >270 cm/s (106 in/s) at focal point |
| Scanning Range | Standard range (SR) |
| Print Contrast | 20 |
| Scan Distance | Standard Range (0-1m) |
| Scan Pattern | Area Image |
| Pitch | 45 |
| Minimum Operating Temperature | -20 °C|-4 °F |
| Maximum Operating Temperature | 122 °F|50 °C |
| Minimum Storage Temperature | -20 °C|-4 °F |
| Maximum Storage Temperature | 158 °F|70 °C |
| Minimum Operating Humidity | 5% |
| Maximum Operating Humidity | 95% |
| Storage Temperature Range | - 20 - 70 °C|- 4 - 158 °F |
| Operating Temperature | - 20 - 50 °C|- 4 - 122 °F |
| Operating Humidity | 5 - 95 % |
| Host System Interface | KBW|RS-232|USB |
| Power Connector Type | Corded |
| Connectivity | Corded |
| Engine Type | 2D |
| Protection Ratings | IP53 |
| IP Rating | IP53 |
| Overall Dimensions | 2.9 x 2 x 1 in|7.3 x 5.1 x 2.6 cm |
| Warranty Duration | 2 yr |
| Product Call-Outs | A flexible licensing solution allows current scanning needs to be met while protecting the option to upgrade scanning capabilities in the future by simply purchasing a license for the appropriate feature.|Easily scans barcodes directly from mobile device or computer screens, almost as if they were printed on paper.|Laser-free aiming provides an accurate scan indication, creating a customer-friendly operating environment while removing the risk of eye injury.|The intelligent multi-interface design supports all popular interfaces in one device, replacing the time-consuming process of scanning programming barcodes with automatic interface detection.|TotalFreedom enables the loading and linking of multiple applications directly onto the scanner, eliminating the need for host system modi cations while offering expanded decoding and data formatting functionality. |
| Product Overview | The Vuquest™ 3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner’s sleek and elegant design also blends seamlessly in retail environments, providing superior-performance scanning of all printed barcodes, and digital barcodes on any smart device. |
| Product Details | Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners. The TotalFreedom™ 2.0 second-generation development platform expands scanner functionality by allowing decoding and formatting plug-ins to be loaded directly onto the Vuquest 3320g scanner, enabling enterprises to rapidly support proprietary or newly developed symbologies. The ability to control the triggering of an external device such as a beeper, photo eye or illumination via external I/O capabilities allows the Vuquest 3320g scanner to enter new markets once reserved for expensive industrial products.NEWLINEWith its small size, ergonomically friendly thumb-activated button and clearly visible indicator LEDs, the Vuquest 3320g scanner offers a dependable handheld or wearable scanning solution. The Vuquest 3320g scanner also offers universal mounting and robust presentation mode scan performance, making the device an ideal fixed-mount scanning solution for use in light industrial applications and kiosks. |
| Standby Current | 90 mA |
| Input Voltage | 5 V DC |
| Form Factor | Fixed |
| Features | Easily Scans Barcodes on Screens|Flexible Licensing|Intelligent Interface Design|Laser-free Aiming |
| Industry | Healthcare|Logistics & Warehouses|Manufacturing |
| Brand | Honeywell |
应用场景
- · 报亭固定安装
- · 轻工业应用
- · 零售 POS
- · 屏幕数字条码
方案推荐
暂无关联方案示例。
常见问题（FAQ）
霍尼韦尔 Vuquest 3320g 紧凑型二维扫描器 的关键规格参数是什么？
霍尼韦尔 Vuquest 3320g 紧凑型二维扫描器 的核心规格如下：品牌：霍尼韦尔 Honeywell；型号：Vuquest 3320g；接口：USB / RS-232 / KBW / IBM 46XX / TTL RS232。完整参数请参见产品详情页的"规格参数"表格，或联系我们获取官方数据手册。
霍尼韦尔 Vuquest 3320g 紧凑型二维扫描器 适合哪些行业和应用场景？
霍尼韦尔 Vuquest 3320g 紧凑型二维扫描器 主要用于 报亭固定安装、轻工业应用、零售 POS 等场景，广泛服务于 零售、运输和物流、制造 等行业，其核心优势是"紧凑面积成像 1D/PDF/2D"，适合有相关业务需求的企业选型和部署。
快速问答
霍尼韦尔 Vuquest 3320g 紧凑型二维扫描器 的关键规格参数是什么？
霍尼韦尔 Vuquest 3320g 紧凑型二维扫描器 的核心规格如下：品牌：霍尼韦尔 Honeywell；型号：Vuquest 3320g；接口：USB / RS-232 / KBW / IBM 46XX / TTL RS232。完整参数请参见产品详情页的"规格参数"表格，或联系我们获取官方数据手册。
霍尼韦尔 Vuquest 3320g 紧凑型二维扫描器 适合哪些行业和应用场景？
霍尼韦尔 Vuquest 3320g 紧凑型二维扫描器 主要用于 报亭固定安装、轻工业应用、零售 POS 等场景，广泛服务于 零售、运输和物流、制造 等行业，其核心优势是"紧凑面积成像 1D/PDF/2D"，适合有相关业务需求的企业选型和部署。
