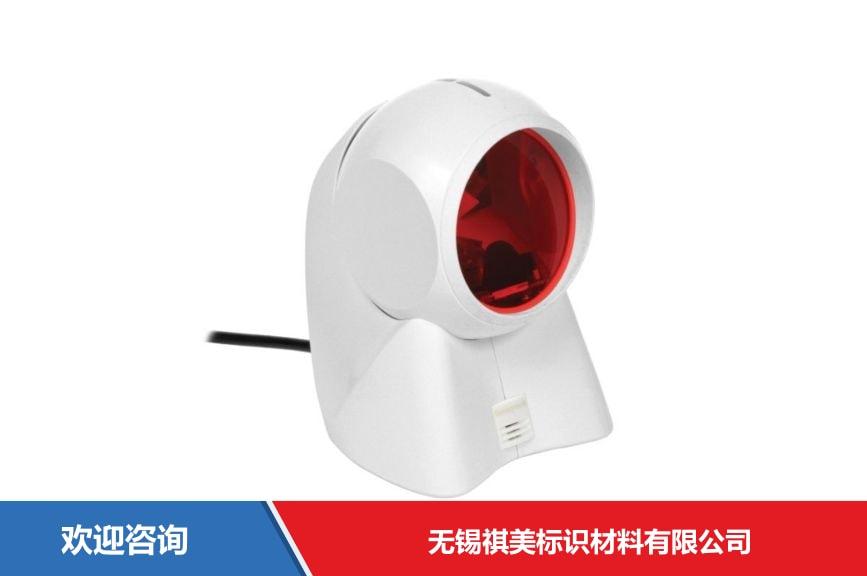

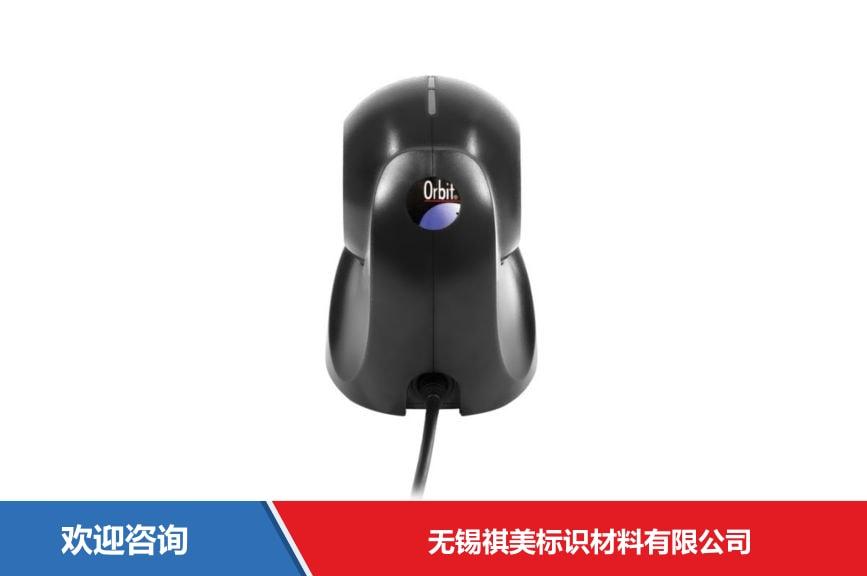

Honeywell 霍尼韦尔 Orbit 7190g 条码扫描器

零售电子商务医疗运输和物流

获取报价电话咨询

快速回答

Honeywell 霍尼韦尔 Orbit 7190g 条码扫描器是什么？

霍尼韦尔 Orbit 7190g 扫描仪结合全向激光扫描与集成面积成像，提供高效结账条形码阅读平台，支持 20 行全向激光模式和双工作模式，适合传统零售柜台使用，兼具传统条形码与数字条形码扫描能力。

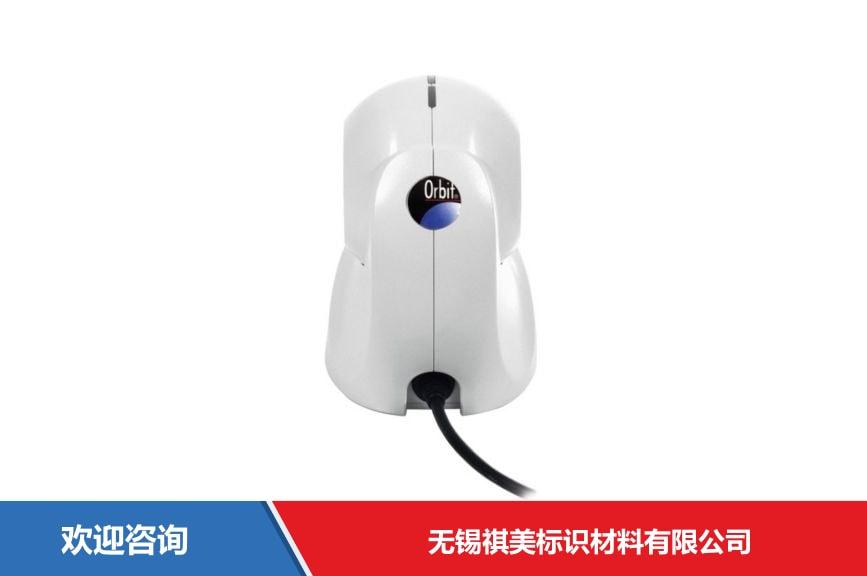

Honeywell 霍尼韦尔 Orbit 7190g 条码扫描器 - 图片 10

1 / 10

产品简介

霍尼韦尔 Orbit 7190g 扫描仪结合全向激光扫描与集成面积成像，提供高效结账条形码阅读平台，支持 20 行全向激光模式和双工作模式，适合传统零售柜台使用，兼具传统条形码与数字条形码扫描能力。

核心优势

激光 + 成像器双引擎集成
20 行全向激光扫描模式
自动接口检测
双工作模式：现金/客户优化
获奖桌面机身外形

关键参数

Skew: 70
Maximum Brightness: 100,000
Decode Capability: 1D/2D

规格参数

参数	规格
Skew	70
Maximum Brightness	100,000
Decode Capability	1D/2D
Scanning Range	Standard range (SR)
Print Contrast	35
Scan Distance	Standard Range (0-1m)
Scan Pattern	Hybrid: Omni-Directional and Area Image
Pitch	60
Minimum Operating Temperature	0 °C\|32 °F
Maximum Operating Temperature	104 °F\|40 °C
Minimum Storage Temperature	-40 °C\|-40 °F
Maximum Storage Temperature	140 °F\|60 °C
Minimum Operating Humidity	5%
Maximum Operating Humidity	95%
Storage Temperature Range	- 40 - 140 °F\|- 40 - 60 °C
Operating Temperature	0 - 40 °C\|32 - 104 °F
Operating Humidity	5 - 95 %
Host System Interface	KBW\|RS-232\|RS485\|USB
Power Connector Type	Corded
Connectivity	Corded
Engine Type	Hybrid
Overall Dimensions	10.8 x 10.3 x 14.8 cm\|4.3 x 4.1 x 5.8 in
Warranty Duration	3 yr
Product Call-Outs	A 20-line omnidirectional laser pattern maintains the proven 1D scanning performance of existing Orbit scanners. With leading Honeywell imaging technology, the scanner reads smartphone coupons and ID cards with ease.\|Automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection – eliminating the tedious task of scanning programming barcodes.\|The Orbit 7190g scanner integrates both a laser and an imager into a single presentation scanner – no need to buy a separate scanner for digital barcode reading, while maintaining superior merchandise barcode scanning.\|The award-winning shape enables handheld scanning of large, bulky items. The adjustable scan head even allows cashiers to tilt the scanner 30° for targeted scanning of larger products.\|With dual-working modes, the scanner is optimized for both scanning digital codes off customer smartphones and scanning merchandise codes by the cashier at the register.
Product Overview	The Orbit 7190g scanner continues the proven, superior 1D laser scanning performance of Orbit series scanners – but adds an area imager for seamless scanning of digital 1D, 2D and PDF codes in a single, convenient device. To speed retail checkouts, the Orbit 7190g scanner features a unique dual-modes design that is optimized for both the cashier and the customer – enabling seamless product barcode scanning and scanning of digital codes off customer smartphones.
Product Details	The Orbit™ 7190g scanner incorporates breakthrough hybrid technology that combines omnidirectional laser scanning and integrated area-imaging to provide a barcode reading platform optimized for highly efficient checkouts. Like other Orbit scanners, it delivers superior pass-through scanning of merchandise linear barcodes, while simultaneously helping retailers address the growing need for digital barcodes reading – without requiring an additional scanner. Like other Orbit scanners – the best-selling hands-free scanners of all time – the Orbit 7190g scanner is an innovative, elegant and affordable solution for convenience retail applications where counter space is at a premium. The award-winning shape enables handheld scanning of large, bulky items. For added flexibility, the scanning head can be tilted within a 30° range to accommodate objects of various sizes and shapes.NEWLINEThe Orbit 7190g scanner seamlessly works for both merchandise scanning by the cashier, and digital barcodes scanning off smartphones by customers. With the dual-modes design, the scanner is automatically optimized for both applications while eliminating the customer annoyance of a laser and LED illumination.NEWLINEThe Orbit 7190g is a plug-and-play scanner, and installing it into existing checkout systems is easy. Multiple on-board interfaces make the Orbit 7190g scanner compatible with most POS systems, and automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection – eliminating the cumbersome task of scanning programming barcodes.
Standby Current	255 mA
Input Voltage	5 V DC
Form Factor	Counter Top
Features	Dual Working Modes\|Laser-Imager Hybrid\|Multi-Interface Design
IP Rating	IP5X
Industry	Retail
Brand	Honeywell
