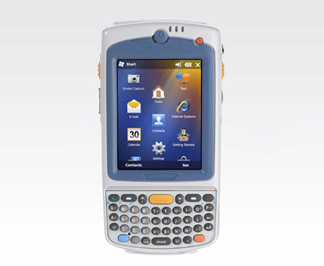

MOTO MC75A0-HC 条码数据采集器
|
| 产品名称：MOTO MC75A0-HC 条码数据采集器 |
|
| 更新时间：2011.11.02 |
| 浏览次数： |
|
 产品详细介绍 |
使用环境
|
Cleanability |
|
Can be disinfected by following the instructions on the product specifications sheet |
|
|
摩托罗拉交互式传感器技术 (IST) |
|
Dynamic screen orientation & free-fall detects |
|
|
存储温度 |
|
-40° F to 158° F/-40° C to 70° C (w/o battery) |
|
|
工作温度 |
|
14° F to 122° F/-10° C to 50° C |
|
|
|
|
|
静电释放 (ESD) |
|
+/- 15KV air discharge; +/- 8KV direct discharge |
|
|
滚落规格 |
|
1, 000 1.6 ft./.5 m tumbles (2, 000 drops); per applicable IEC Specifications |
|
|
跌落规格 |
|
从 6 英尺/1.8 米高处多次摔落，符合军用标准 (MIL STD) 810G 规 |
|
|
物理参数
|
|
|
|
重量 |
|
WLAN: Standard 1.5x battery: 14ozs./398g |
|
|
|
网络连接 |
|
以太网（通过通讯座）, 全速 USB，主机或客户端 |
|
|
键盘 |
|
Includes QWERTY – Numeric, QWERTZ and AZERTY keypads will be available through custom product requests |
|
|
显示屏类型 |
|
3.5 inch color high definition VGA display (640 x 480) |
|
|
显示屏分辨率 |
|
Transflective Color 3.5 full VGA with backlight, 640x480 |
|
|
尺寸 |
|
WLAN: 6in. L x 3.3in. W x 1.7in.D (15.24cm L x 8.4cm W x 4.4cm D) |
|
|
音频选件 |
|
话筒, TEAM Express 兼容, 手机模式 |
|
|
|
|
性能参数
|
操作系统 (OS) |
|
Microsoft Windows Mobile 6.5 Professional |
|
|
处理器 (CPU) |
|
PXA320 @ 806 MHz |
|
|
内存 (Flash/RAM) |
|
256MB RAM/1GB Flash |
|
|
数据捕捉采集选项 |
|
1D/2D bar code scanning plus 3.2 megapixel auto-focus flash enabled color digital camera |
|
功率
|
扩展容量电池 |
|
Rechargeable Lithium Ion 3.7V, 4800 mAh Smart Battery |
|
|
主电池 |
|
Rechargeable Lithium Ion 3.7V, 3600 mAh Smart Battery |
|
无线数据通讯
|
无线局域网 |
|
802.11a/b/g tri-mode radio |
|
|
WPAN（支持蓝牙技术） |
|
II 级、v2.1 增强数据速率 (EDR), 集成天线 |
|
|
语音通信 |
|
Integrated voice-over-IP ready (P2P, PBX, PTT), , IEEE 802.11a/b/g direct sequence wireless LAN |
|
|
安全性 |
|
WPA2, WEP (40 or 128 bit), TKIP, TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLS-MD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES, LEAP, CCX v4 Certified, FIPS 140-2 certified |
|
|
工作信道 |
|
信道 1-13 (2412-2472 MHz), 信道 14 (2484 MHz) 仅限日本, 信道 8-169 (4920-4980 MHz) 仅限日本, 信道 8-165 (5040-5825 MHz), 实际的工作信道/频率视规章制度和认证机构而定 |
|
|
支持的个别数据速率 |
|
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps |
|
|
|
|
质保
|
手持设备质保 |
|
The MC75A0-HC is warranted against defects is workmanship and materials for a period of 12 months from date of shipment provided that the product remains unmodified and is operated under normal and proper conditions |
|
|
|
| |
|
|
